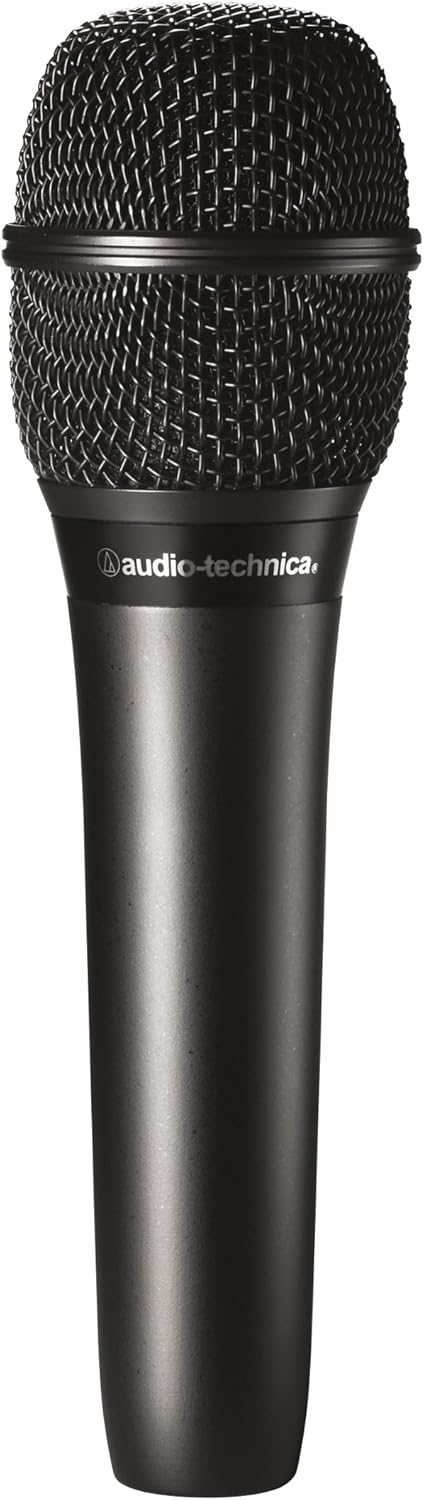

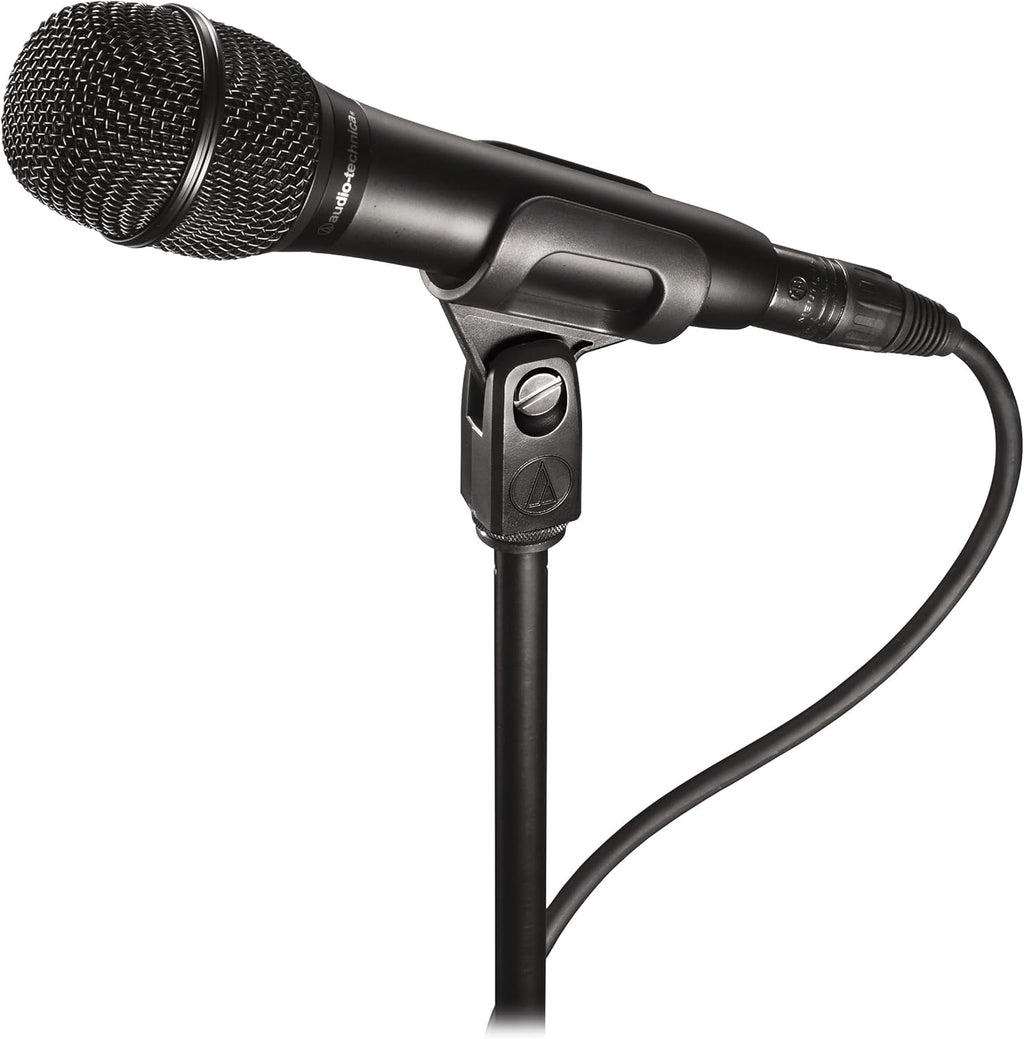

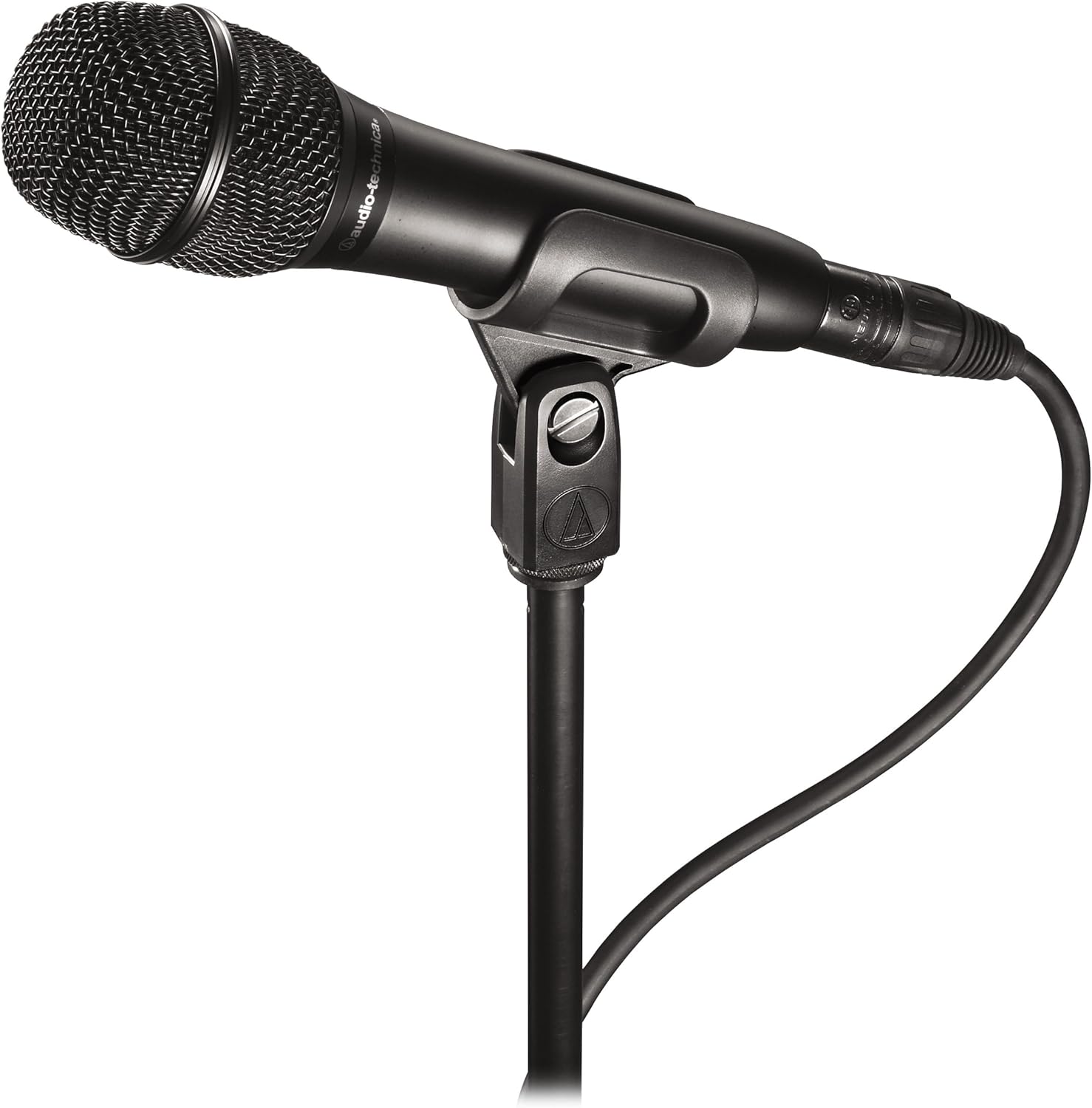

Cardioid Condenser Handheld Microphone F800
Sale price
$26.95
Regular price $84.87
Skip to product information
Extended frequency response and superior transient response for smooth, natural sonic characteristicsHigh SPL-handling and wide dynamic range provide unmatched versatilityCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceMulti-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarityCorrosion-resistant contacts from gold-plated XLRM-type connector
Cardioid Condenser Handheld Microphone F800
Sale price
$26.95
Regular price $84.87
Shipping calculated at checkout.
The AT2010 is designed to bring the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances. Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.
| AT2010 | AT2020 | AT2021 | AT2022 | AT2035 | AT2050 | |
|---|---|---|---|---|---|---|
| Element | Fixed-charge back plate permanently polarized condenser | Fixed-charge back plate, permanently polarized condenser | Fixed-charge back plate, permanently polarized condenser | Fixed-charge back plate, permanently polarized condenser | Fixed-charge back plate, permanently polarized condenser | Externally-polarized (DC bias) condenser |
| Polar Pattern | Cardioid | Cardioid | Cardioid | X/Y Stereo | Cardioid | Cardioid, Omnidirectional, Figure-of-Eight |
| Frequency Response | 40-20,000 Hz | 20-20,000 Hz | 30-20,000 Hz | 20–20,000 Hz | 20-20,000 Hz | 20-20,000 Hz |
| Open Circuit Sensitivity | –48 dB (3.9 mV) re 1V at 1 Pa | –37 dB (14.1 mV) re 1V at 1 Pa | –39 dB (11.2 mV) re 1V at 1 Pa | -41 dB (8.9 mV) re 1V at 1 Pa | -33 dB (22.4 mV) re 1V at 1 Pa | –42 dB (7.9 mV) re 1V at 1 Pa |
| Impedence | 100 ohms | 100 ohms | 250 ohms | 200 ohms | 120 ohms | 120 ohms |
| Maximum Input Sound Level | 136 dB SPL, 1 kHz at 1% T.H.D. | 144 dB SPL, 1 kHz at 1% T.H.D. | 145 dB SPL, 1 kHz at 1% T.H.D. | 122 dB SPL, 1 kHz at 1% T.H.D. | 148 dB SPL, 1 kHz at 1% T.H.D.;158 dB SPL, with 10 dB pad (nominal) | 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
| Dynamic Range | 113 dB, 1 kHz at Max SPL | 124 dB, 1 kHz at Max SPL | 126 dB, 1 kHz at Max SPL | 103 dB, 1 kHz at Max SPL | 136 dB, 1 kHz at Max SPL | 132 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 71 dB, 1 kHz at 1 Pa | 74 dB, 1 kHz at 1 Pa | 75 dB, 1 kHz at 1 Pa | 75 dB, 1 kHz at 1 Pa | 82 dB, 1 kHz at 1 Pa | 77 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 2 mA typical | 48V DC, 2 mA typical | 48V DC, 2 mA typical | N/a | 11-52V DC, 3.8 mA typical | 11-52V DC, 4.7 mA typical |
| Switches | N/a | N/a | N/a | Off, on/flat, on/roll-off | Flat, roll-off; 10 dB pad (nominal) | Polar selection; Flat, roll-off; 10 dB pad (nominal) |
